Suzhou Fleu Valve Co., Ltd

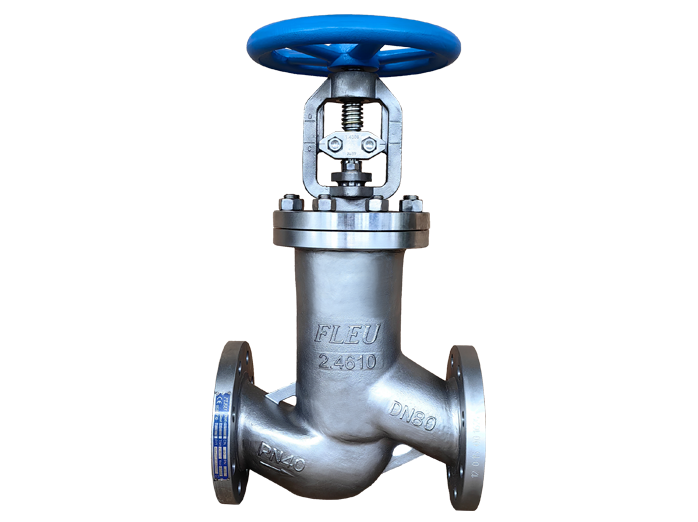

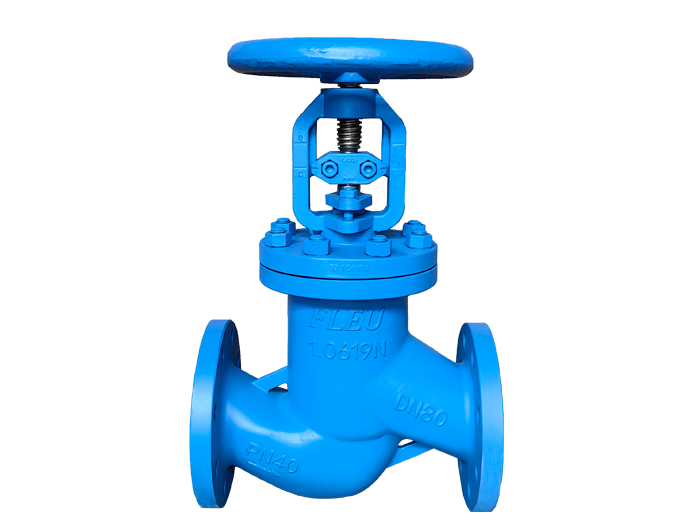

DIN Bellows Seal Globe Valve Fig.112

Nominal size:: DN15 to DN400

Pressure range:: PN10 to PN40

Temperature range:: From -29℃ to +425℃/CS From -196℃ to +540℃/SS

Materials of body:: 1.0619,1.4408,1.6220,1.4581, 2.4610 1.7357,1.7379,1.4308,1.4470

End connections:: Flanges acc.to EN 1092-1

Accessory:

Specifications
Datasheets
Operating manuals
Application

Certificates and approvals: TA-Luft VDI2440, ISO 15848-1
Basic design:EN 13709
Test：DIN EN12266-1
Operated Way: Handwheel,Bevel Gear,Pneumatic,Electric

DIN 1.0619N 1.4408 flange Bellows seal globe valve Fig.112i,112c PN16, 40 DN15-DN400 EN558-1 G1.pdf

DIN 1.0619N 1.4408 BW Bellows seal globe valve Fig.112i,112c PN16, 40 DN15-DN400 EN558-1 G1.pdf

Operating manuals-Bellows seal globe valve.pdf

Refining
Oil & Gas
Petrochemical
Chemiacl
Power plant
Water treatment
LNG
Hydrogen energy
