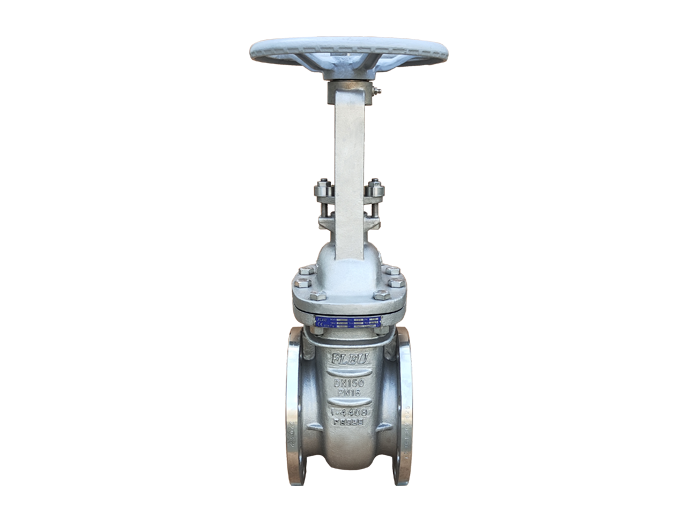

DIN Gate Valve Fig.052

Nominal size:: DN40 to DN600

Pressure range:: PN10, PN16

Temperature range:: From -29℃ to +450℃/CS From -196℃ to +400℃/SS

Materials of body:: 1.0619,1.4408,1.6220,1.4581 1.7357,1.7379,1.4308,1.4470

End connections:: Flanges acc.to EN 1092-1

Accessory:

Specifications
Datasheets
Operating manuals
Application

Certificates and approvals: TA-Luft VDI2440
Basic design: EN 1984
Test: DIN EN12266-1
Face to face: EN558-1 G14
Operated Way: Handwheel,Bevel Gear,Pneumatic,Electric

DIN 1.0619 1.4408 flange gate valve fig.052 PN10.16 DN40-DN600 EN 558-1 G14.pdf

Operating manuals-Gate valve.pdf

Refining
Oil & Gas
Petrochemical
Chemical
Power plant
Water treatment
LNG
Hydrogen energy
